UltraFocus-DXA
| ⇦ | ⇩ More Product information ⇩ | Home ⊳ |

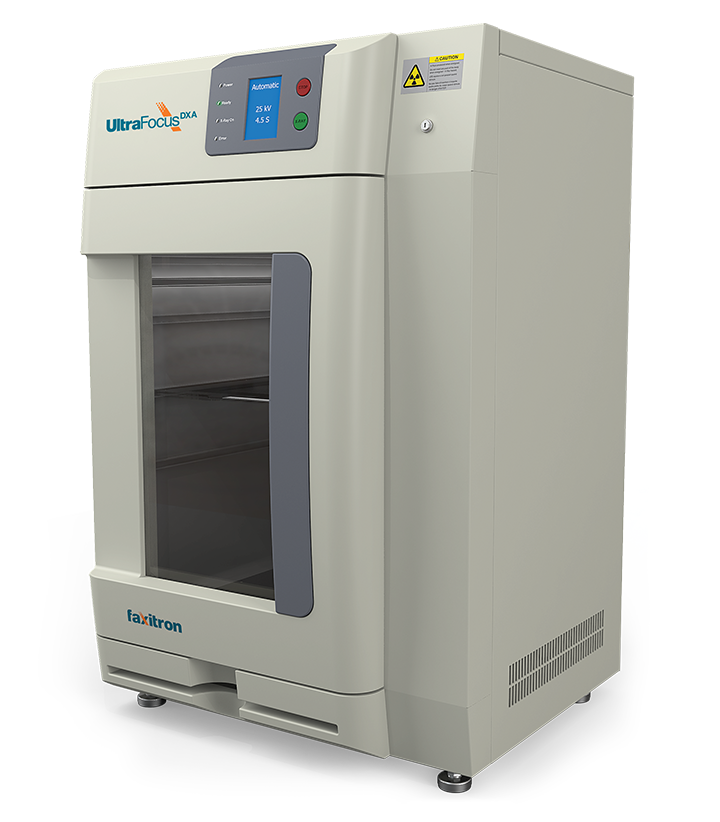

UltraFocusDXA by Faxitron® is a compact ultra-high-resolution imaging and dual-energy x-ray absorptiometry (DXA) system. Designed for placement on a lab bench or directly in the barrier facility to protect the integrity of the colony, UltraFocusDXA consists of a fully self-contained x-ray unit and workstation. For longitudinal studies, an integrated port provides a safe method for inserting lines for delivering anesthesia. UltraFocusDXA also automatically acquires BMD, BMC, and body composition results in under 3 minutes. [TOP⇧]or[Return⇒]
- High-resolution imaging via a 10X magnification tray which provides as high as 5 micron resolution. Images are instantaneously displayed on included 24” high-resolution 3.7MPx monitor
| Specifications | |
| Energy range | 10-100 kV |
| Sample imaging size | 10cm x 15cm (4” x 6”) |
| Pixel pitch | 48μm |
| Spatial resolution | 8μm at 6X geometric magnification |
| Tube current | 0.3mA max (isowatt limited to 12W from 41-60kV) |
| Focal spot size, nominal | 8μm |
| Window filtration | 0.25mm Be, tungsten source |
| Power | 100-240VAC ±10%, 50/60Hz, 150VA |
| Dimensions external | 23” W x 21” D x 36” H (59cm x 54cm x 90cm) |
| Dimensions internal | 15.4” W x 15.4” D x 22” H (39cm x 39cm x 56cm) |
| Weight | 415lbs (188kg) |
| Shipping Weight | 510lbs (230kg) |
