Mars1417V

- Better image quality lower dose - i-Sync 2 technology increased reliability with more sensitivity - Easy installation and shareable between diverse X-ray system
- FDA Certification (DEPARTMENT OF HEALTH&HUMAN SERVICES)- 8,Dec 2016

＜Video Show＞

【Back to⇒ iRay Technolgy】

Description

Details

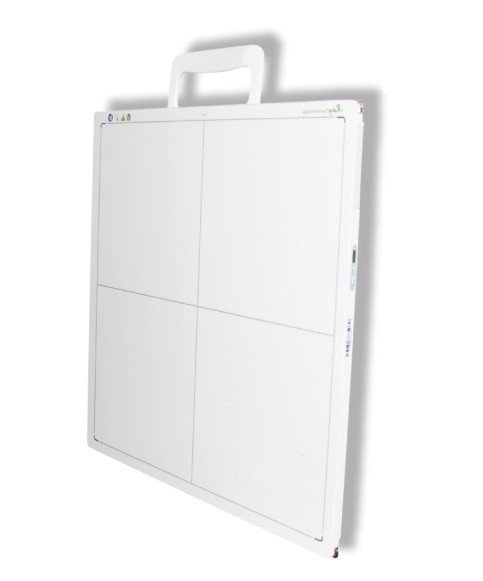

Mars 1417V Superior 14 × 17-inch Cassette-size Flat Panel Detector Designed for Digital Radiography

Mars 1417V is a smart 14×17-inch wireless, cassette-sized FPD for radiographic imaging. It features reliable AED, dependable wireless performance, and a long battery life. The Mars 1417V supports a fast work flow, and is the optimal choice for both retrofit and new DR system solutions.

Features

Wireless cassette detector per ISO 4090, fits in bucky
150 μm pixel pitch, with 16 bit ADC for more image details
Stable iSync+ Automatic Exposure Detection (AED)
Dual band (2.4 and 5 GHz) wireless support with easy sharing
Long battery life and smart workflow
Direct deposition CsI for better image quality with lower dose

Technical Specifications :

Technical Parameters

Mars 1417V
Detector Technology	Amorphous Silicon	Full Image Time (s)	5
Scintillator	CsI	Dimension (mm)	384 x 460 x 15
Active Area (inch)	14 × 17	Weight (kg)	3.6
Pixel Matrix	2304 × 2800	Static Loading (kg)	150 Uniformly
Pixel Pitch (μm)	150	Ingress Protection	IPX1
Spatial Resolution (lp/mm)	3.4	Operating Temperature (℃)	5~35
AD Conversion (bit)	16	Storage & Transport Temperature with Package(℃)	-20~55
Battery Autonomy (h)	5	Operating Humidity（% RH）	10~90 (Non-Condensing)
WIFI	2.4G and 5G IEEE802.11 a/b/g/n/ac	Storage & Transport Humidity with Package （% RH）	5~95 (Non-Condensing)
Trigger Mode	AED (optional) / Software

* This document cannot be considered to be a contractual specification.

The information given herein may be modified without notice.

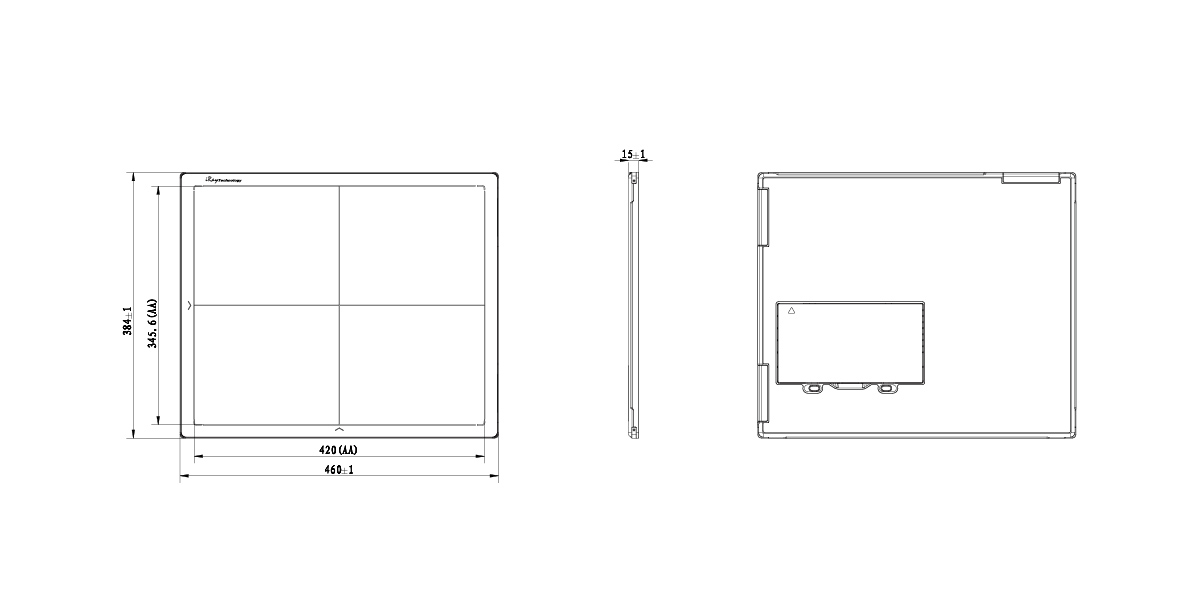

Dimensions
